Description

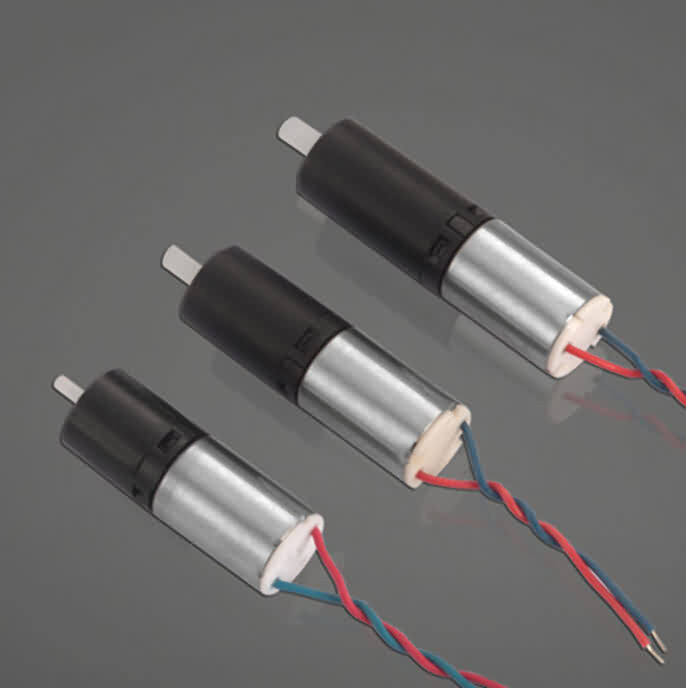

micro dc gear motor Plastic Planetary Micro DC MotorThese compact micro planetary DC gear motors use plastic planetary gears to keep noise low while delivering impressive torque for their size. Theyre ideal for micro robotics, small mechanisms, and consumer electronics where smooth, quiet motion matters. Technical Parameters Size (mm) Gear Ratio Voltage Range Rated Voltage No load Speed No load Current Stall Torque Stall Current 6 16. 3 26: 1 1. 56. 0 VDC 3. 0 VDC 1250 rpm 40 mA 25 gcm 0. 2 A 6 18. 8
These compact micro planetary DC gear motors use plastic planetary gears to keep noise low while delivering impressive torque for their size. They’re ideal for micro-robotics, small mechanisms, and consumer electronics where smooth, quiet motion matters.
Technical Parameters
| Size (mm) | Gear Ratio | Voltage Range | Rated Voltage | No-load Speed | No-load Current | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 6 × 16.3 | 26:1 | 1.5–6.0 VDC | 3.0 VDC | 1250 rpm | 40 mA | 25 g·cm | 0.2 A |
| 6 × 18.8 | 136:1 | 1.5–6.0 VDC | 3.0 VDC | 240 rpm | 60 mA | 120 g·cm | 0.2 A |
| 6 × 21 | 700:1 | 1.5–6.0 VDC | 3.0 VDC | 47 rpm | 60 mA | 500 g·cm | 0.2 A |
Notes: Stall torque/current are measured at stall (do not run continuously at stall). Specs may vary slightly by production batch.
